Deluxe DiamondCut Oil Cooler System for Yamaha

Deluxe DiamondCut Oil Cooler System for Yamaha

Part # 760-1700

$ 550.00

For Yamaha Roadstar, Warrior, & Raider

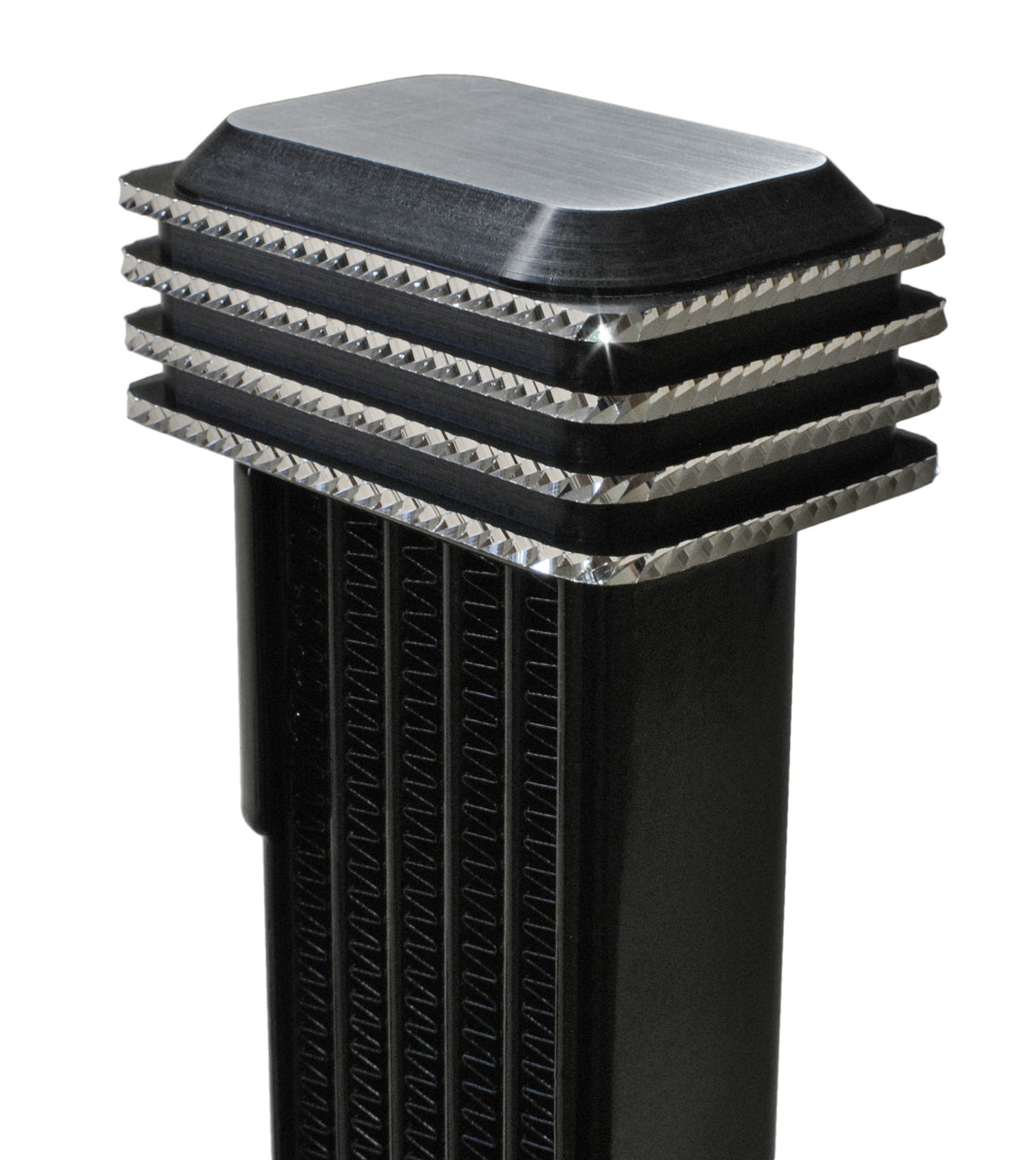

Available as a limited edition, the Jagg Deluxe DiamondCut oil cooler kit features precisely machined end-caps with hundreds of angled cuts that reflect light and dress up any bike.

The cooler mounts to the left frame down-tube, spaced away from the frame to allow airflow to both the oil cooler and engine's cylinders. The cooler is mounted to the frame using unique, highly-durable, Uralite mounts which have a shock-absorbing effect and clean styling. The Deluxe DiamondCut Oil Cooler's, six-tube, two-pass design offers three-times the cooling surface than our closest competitor. Special in-line turbulators add to the cooler's efficiency with minimal oil pressure loss or restriction. Aluminum construction with durable powder coated finish. Billet aluminum end caps with DiamondCut machined fins will match and complement the style of the engine's cooling fins.

Jagg's unique 4800 Yamaha oil filter adapter fits between the engine block and the oil filter housing to provide simple and effective access to the oil supply for installation of the oil cooler. The adapter is machined from a single piece of billet aluminum and then hard-anodized to a satin black finish. Designed with the same HyperFlow Technology as all Jagg components to ensure great performance as well as great flow characteristics.

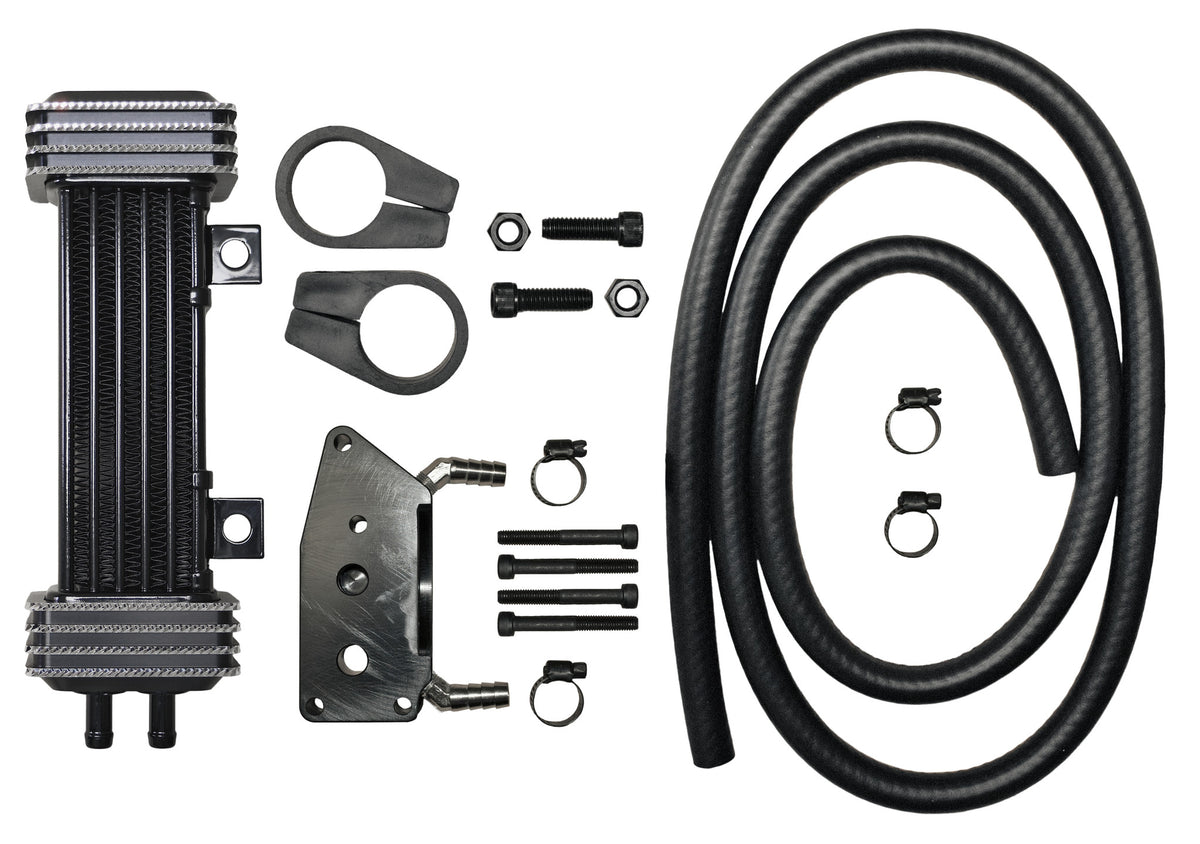

The Deluxe DiamondCut Oil Cooler Kit is supplied complete with all necessary hardware and detailed, easy-to-follow installation instructions.
